Vanquish Products VS4-10 Pro Rock Crawler Kit W/Origin Half Cab Body (Clear Anodized) #VPS09003

The Vanquish VS4-10 Pro Rock Crawler Kit represents the top tier of RC scale vehicle kits, providing the highest quality materials, superior design, and the most durable platform available in its market. The VS4-10 Pro offers a list of features that have never been matched, providing a building and driving experience out of the box that are sure to impress.

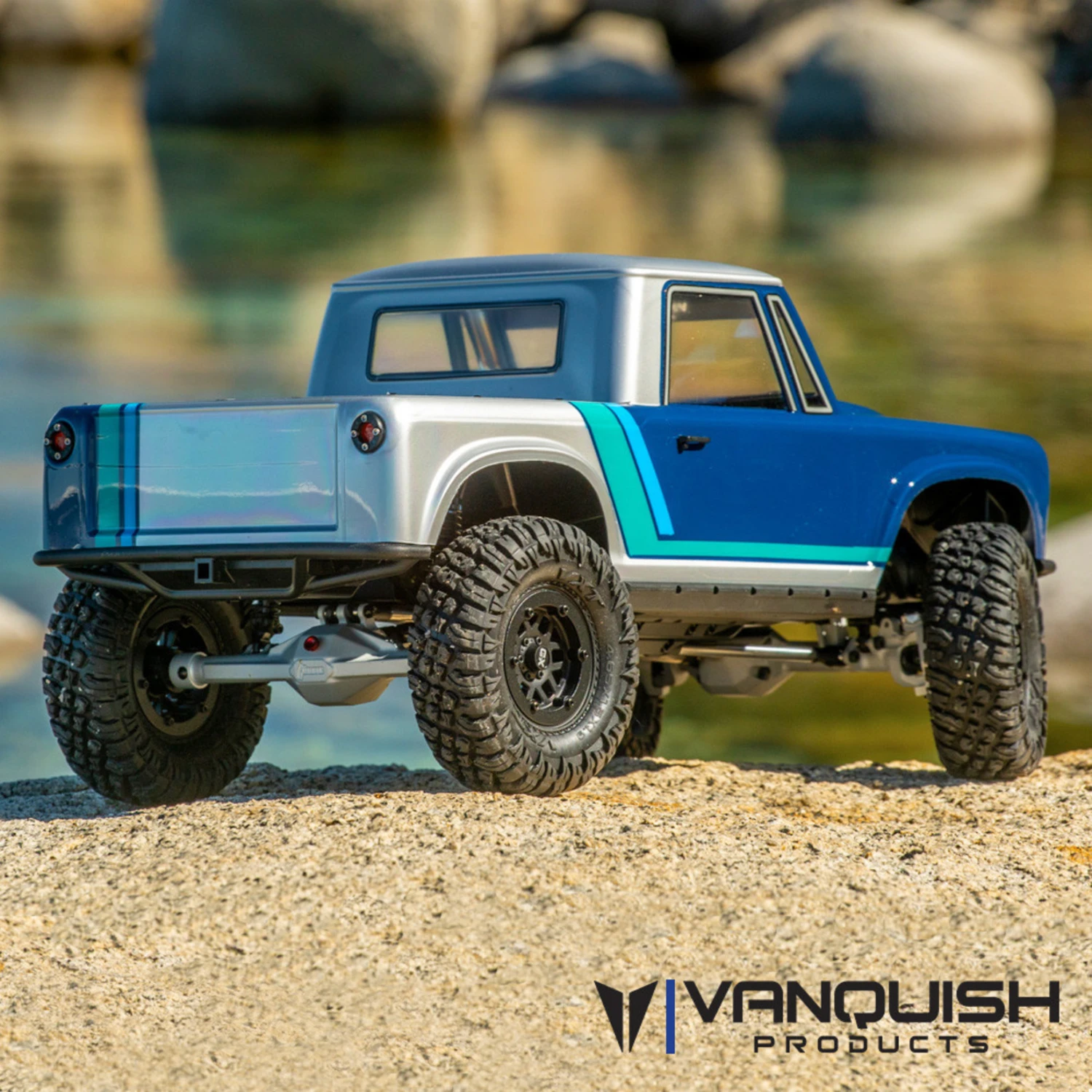

NOTE: Finished model shown in photos is for illustrative purposes only. This is a kit that requires assembly and painting. See needed to complete list below for a full list of items required to complete the model.

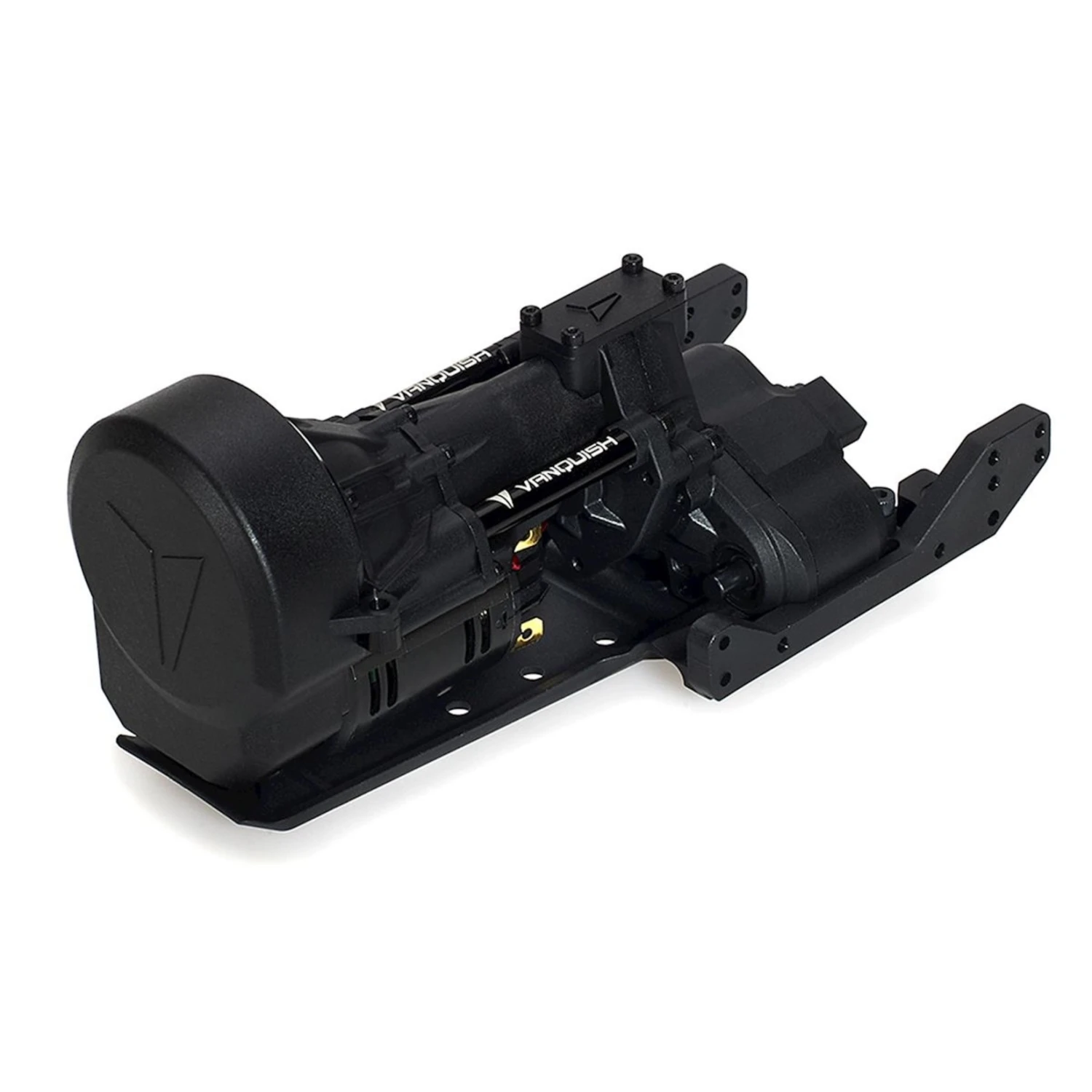

VFD TRANSMISSION

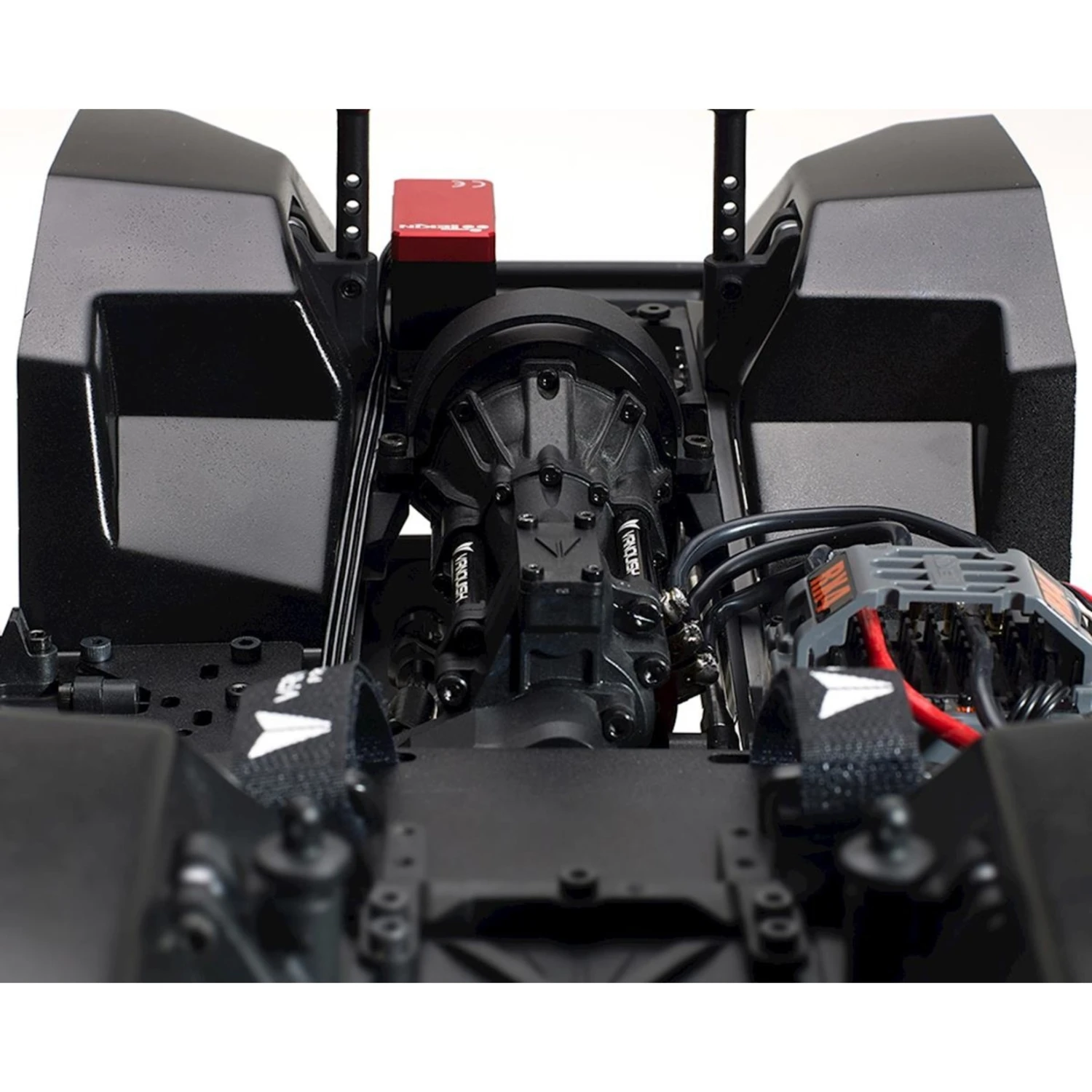

The VFD Transmission from Vanquish Products is designed to provide an optimal balance of performance, scale appearance, strength and versatile optional accessories. The VFD’s design places the motor forward and as low as possible to keep the weight where you want it. The VFD’s combination of offset front T-case output and offset pumpkin of the Currie front axle makes this possible. The T-case utilizes unique aluminum bearing plates for high strength bearing positioning and the elimination of flex found in traditional plastic housings. The modular design of the bearing plates allows for optional gear ratios used to be used inside the T-case.

• Aluminum Bearing Plates
• Wide Profile Steel Machined Gears
• Overdrive Gear Set (6.5% OD)
• Hardened Chromoly Shafts
• Industry standard 32P spur gears
• Low Motor Position (540 Size)
• Full ball bearing transmission
• Extended Skid Plate for Motor Protection
• Offset front output for offset front axle configuration
• Scale Molded Transmission Housing
• 6mm Aluminum motor plate
• Molded Spur Gear Cover
• Optional Overdrive gearsets available (coming soon)
• Topshaft with slipper eliminator
• 32P 56T Spur and 15T Pinion

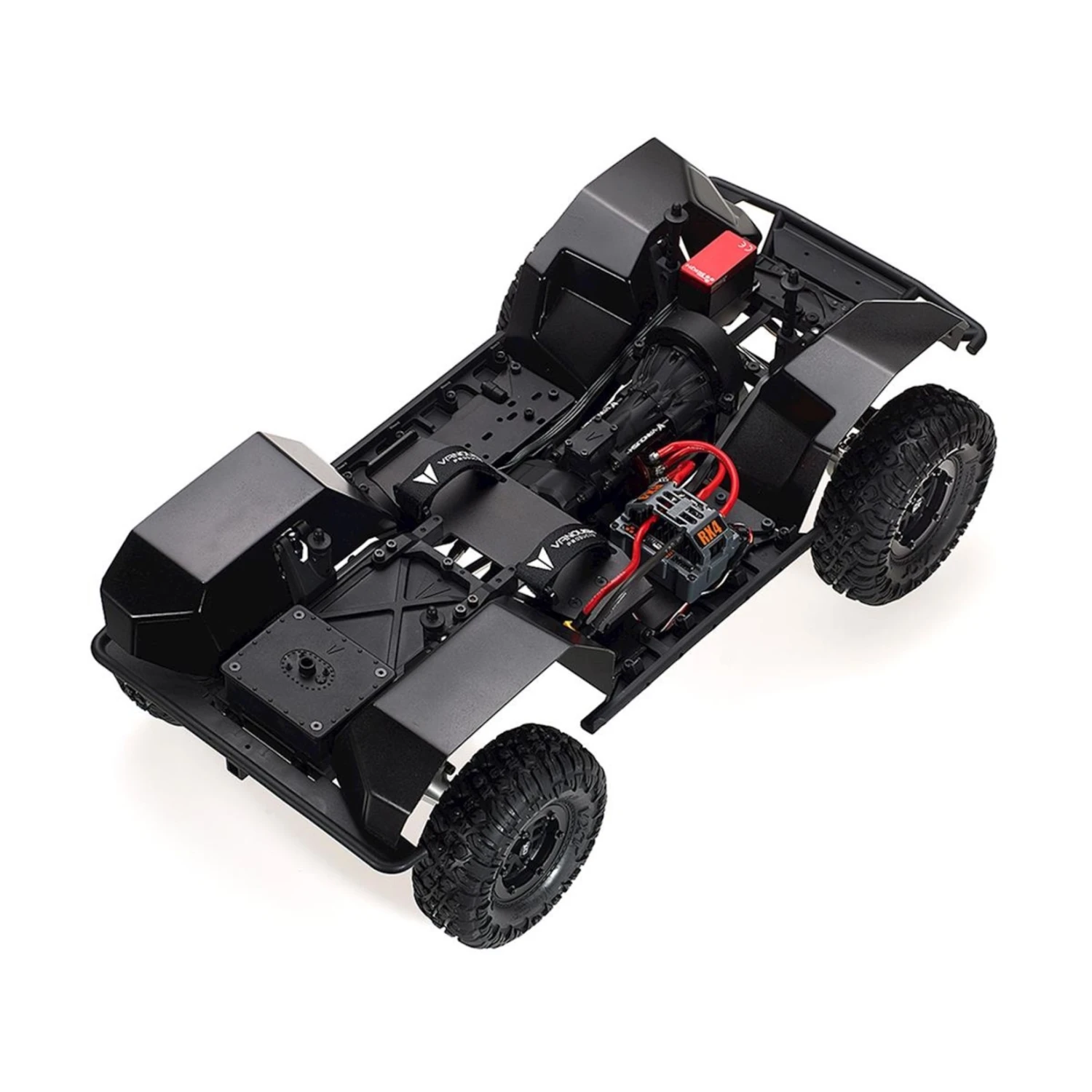

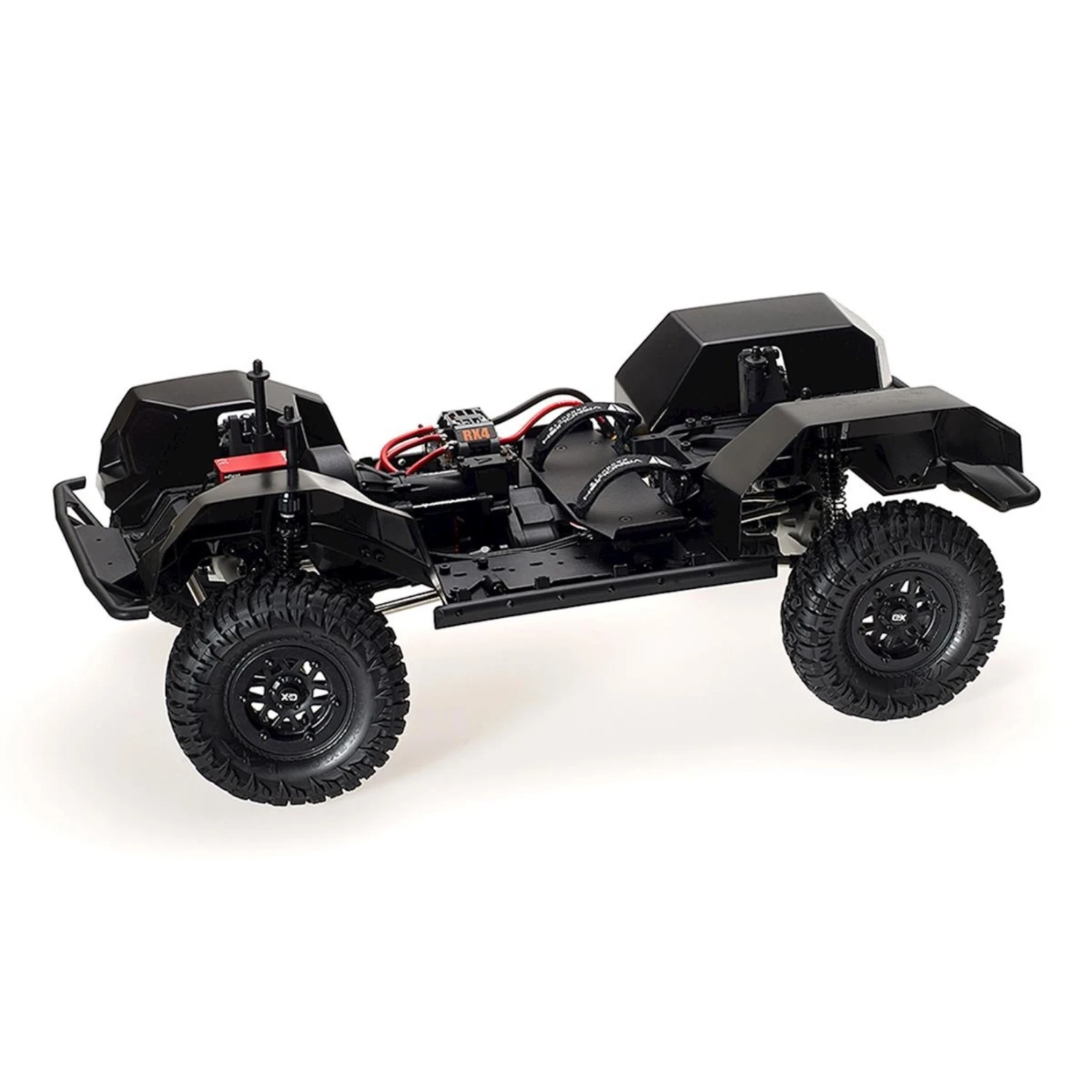

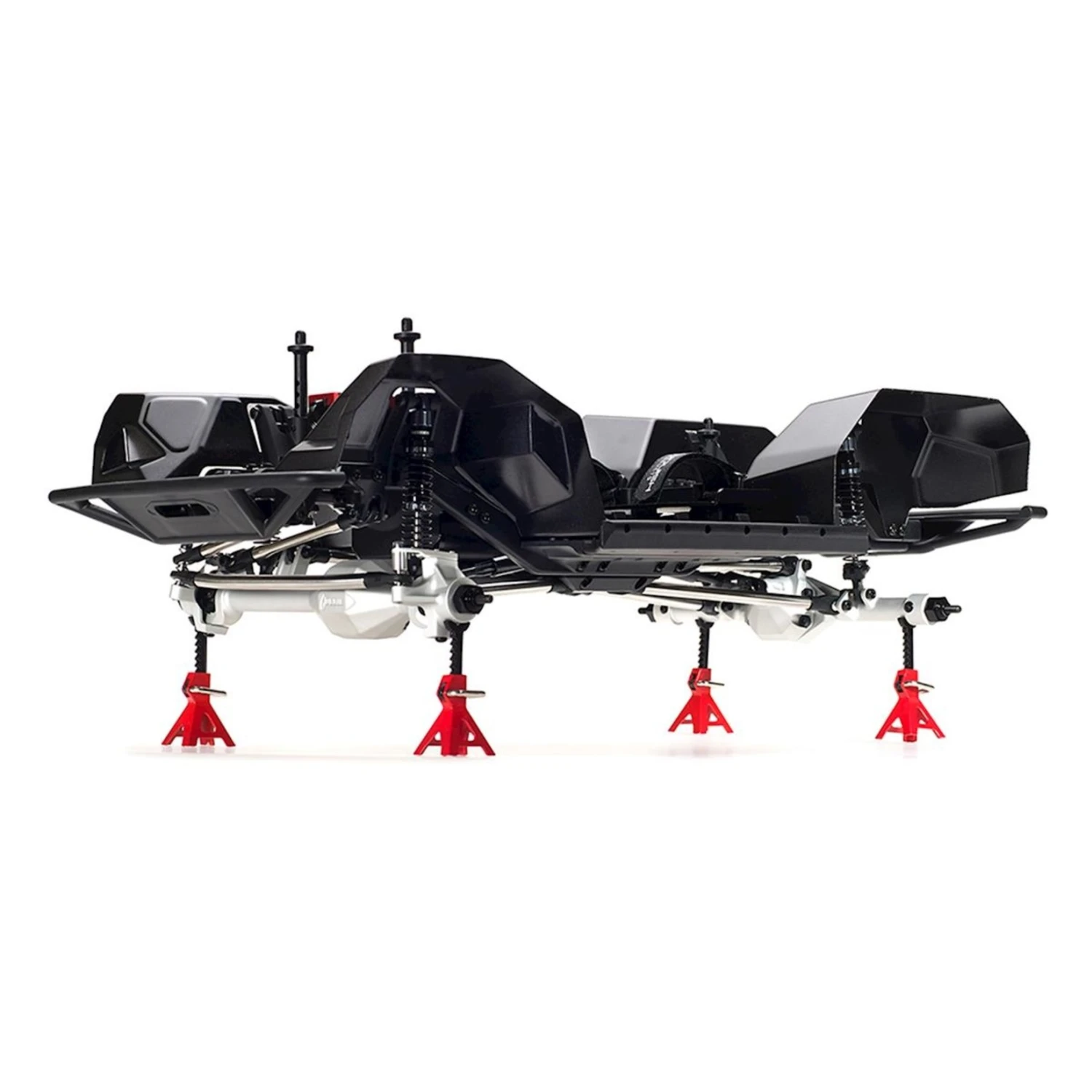

Vanquish Products VS4-10 Chassis is made to provide you with a balance scale looks and unhindered performance. The steel C-channel design provides scale detail, molded front and rear cross members fill the chassis rails in the highest stress locations for ultimate strength and provide features like dual servo mounts, winch line routing, and a fuel cell. The molded rock sliders come with a replaceable outer portion that perfectly fits the Origin Halfcab body. The VS4-10 chassis is developed to work with the included Vanquish Products VFD transmission. The panhard mount on the chassis is made from machined aluminum to withstand the impacts of severe trail conditions. Molded shock towers capture the top of the 90mm Incision Scale Shocks in double shear for maximum support. The aluminum battery and electronics trays provide multiple locations for battery and electronics placement. Full width molded front and rear bumpers increase approach and departure angles and allow for flexibility during impacts on the trail.

• C-Channel Chassis Rails
• Chassis Mounted Servo
• Aluminum Panhard Mount
• Double Shear Shock Mounting
• Balanced Battery and Electronics Tray Arrangement
• Molded Front and Rear Bumpers
• Molded Rock Sliders
• Molded Lexan Inner Fenders
• Servo Winch Mounting Location
• Bodyside Retaining Guides
• Optional Rear Upper Link Mounting Locations
• Optional Front Upper Link Mounting Locations
• Standard Chassis Bumper Mounting Geometry (Fits popular post style bumpers)

The VS4-10 Pro drivetrain utilizes the new VFD transmission and our proven axles you already know and trust. The licensed Currie Enterprises F9 style front axle features an offset front differential housing and uses chromoly VDI universal axle shafts, high-pinion hypoid ring gear, chromoly 6 bolt spool and patent pending one-piece bearing retainers to create an incredibly scale and durable front axle assembly. Integrated inner c-hubs create an unmatched scale look and are strengthened to provide the most durable axle housing possible, with easily replaceable chromoly threaded inserts for the knuckle king pin screws. The rear Currie F9 style axle features a centered differential housing and equal length chromoly axle shafts, with the same gears and spool found in the front axle.

• VFD Transmission
• Currie Enterprise Axle Housings
• Offset Front Pumpkin
• Centered Rear Pumpkin
• High-Pinion Hypoid Axle Gears
• 6-Bolt Ring Gear and Spool
• Chromoly VDI front axles
• Integrated Inner C’s
• Chromoly Threaded Inserts
• One-Piece Bearing Retainers (patent pending)
• Aluminum Knuckles with Scale High Steer Arm
• Chromoly Rear Axle Shafts
• Scale F9 3rd Members
• Double Shear Shock Mounts
• Aluminum 12mm Hexes
• Incision Steel Driveshafts
• Full Ball Bearing

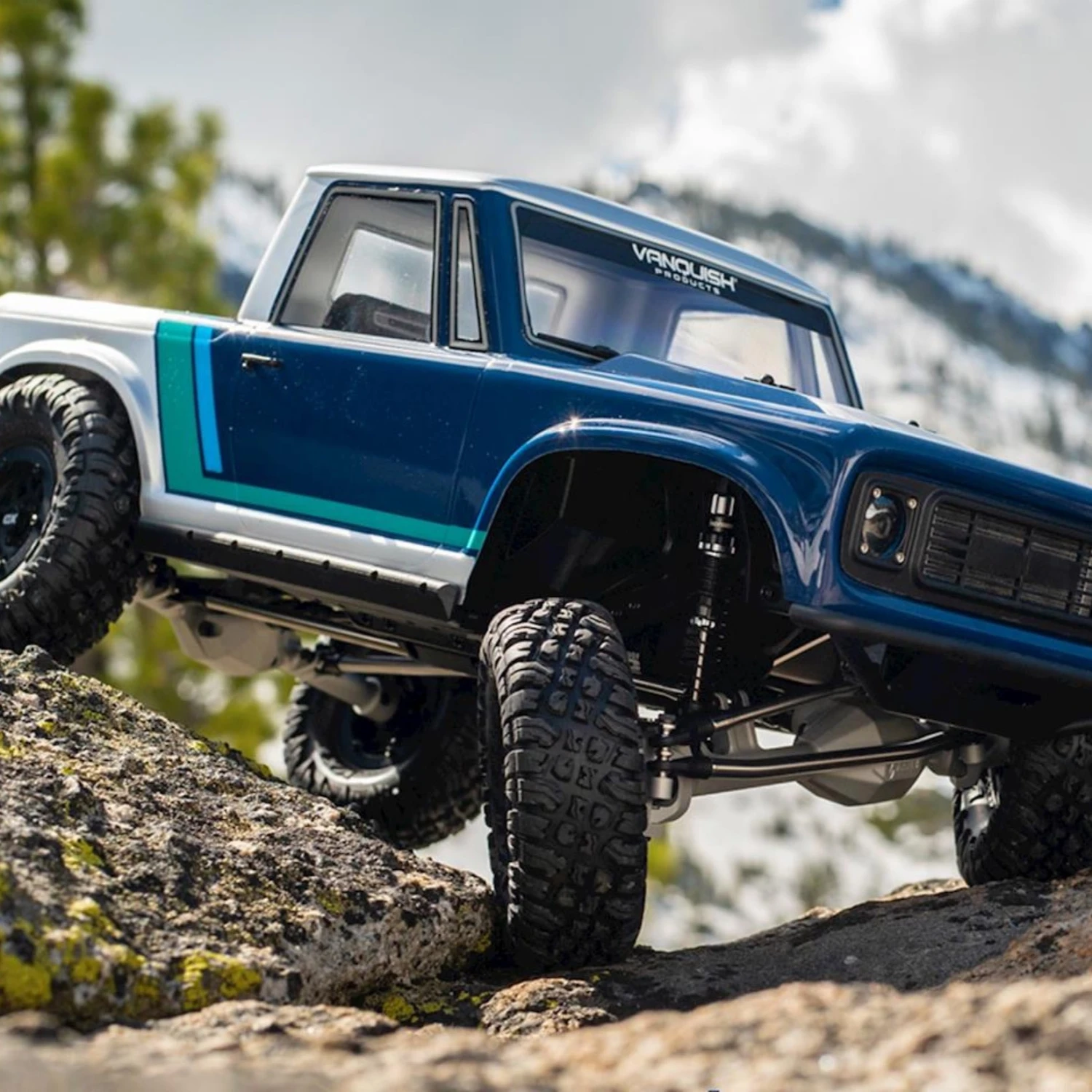

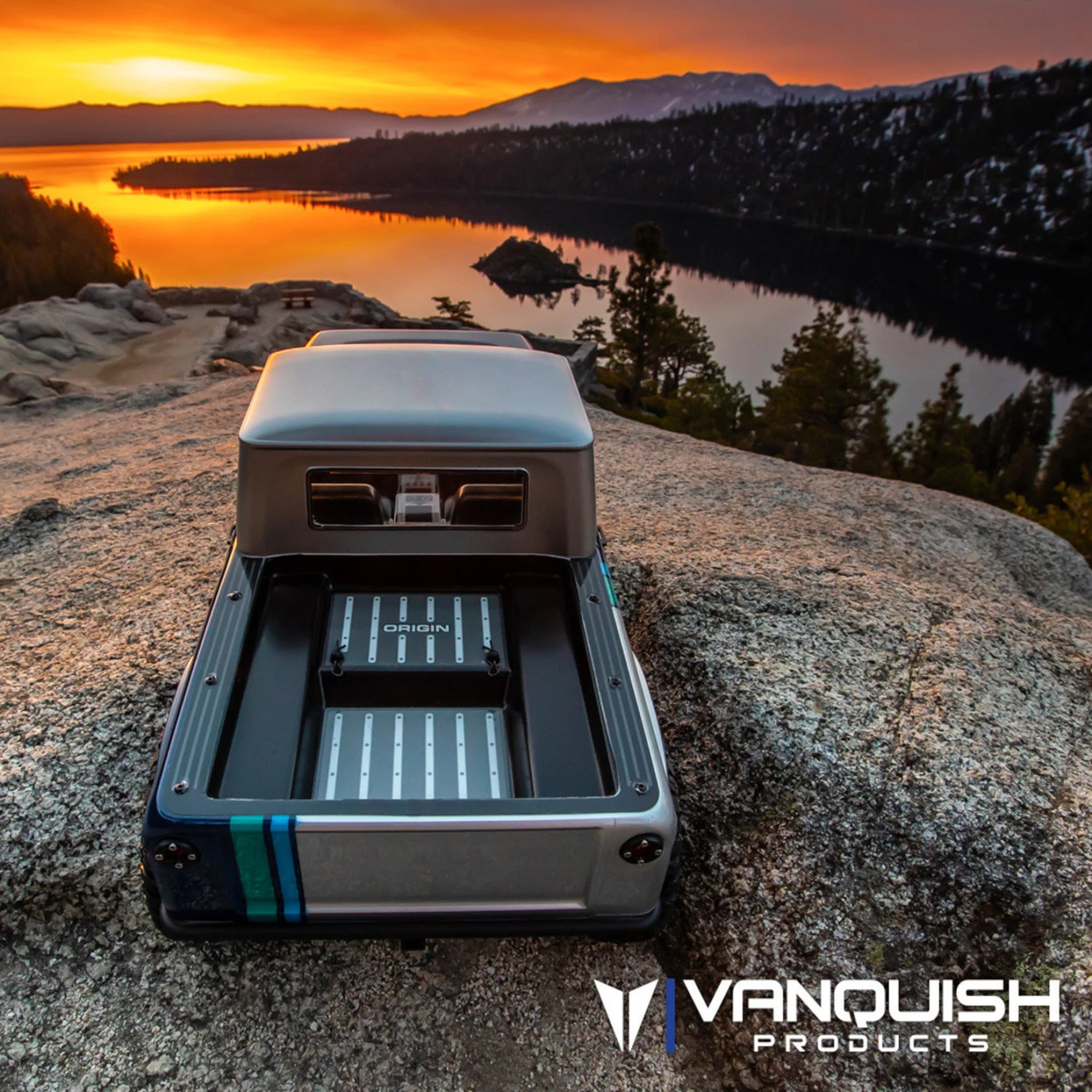

The Origin Halfcab polycarbonate body offers retro styling with a modern flair. The full polycarbonate interior was designed by Knight Customs with front bucket seats, a detailed dash and large cargo area in the back. The dash attaches to the interior and molded plastic details like steering wheel and gear shifter help bring the interior to life. The detailed front grill assembly is injection molded and features 10mm LED ready headlight buckets, with a scale radiator assembly, fans, and fan shrouds. In addition, the front light buckets can be replaced with optional Vanquish Rigid Industries Q-Series light pods for even more light! The rear light buckets fit 5mm LEDs, so everyone will take notice when you are coming or going. Other scale details like windshield wipers, door handles and fuel filler cap are included to step up the appearance even further. The entire body, interior and mounting holes are all laser cut – so all you need to worry about is paint.

• Retro Halfcab Styling
• Molded Front Grill
• Full Interior
• Separate Dash
• Molded Steering Wheel and Gear Shifter
• 10mm LED Ready Headlight Buckets
• 5mm LED Ready Taillight Buckets
• Molded Scale Radiator
• Molded Fans and Shrouds
• CNC Laser Cut
• Extra Scale Details (Wipers, Door Handles, Fuel Filler)
• Window Trim, Interior and Logo Decals
• Paint Masks

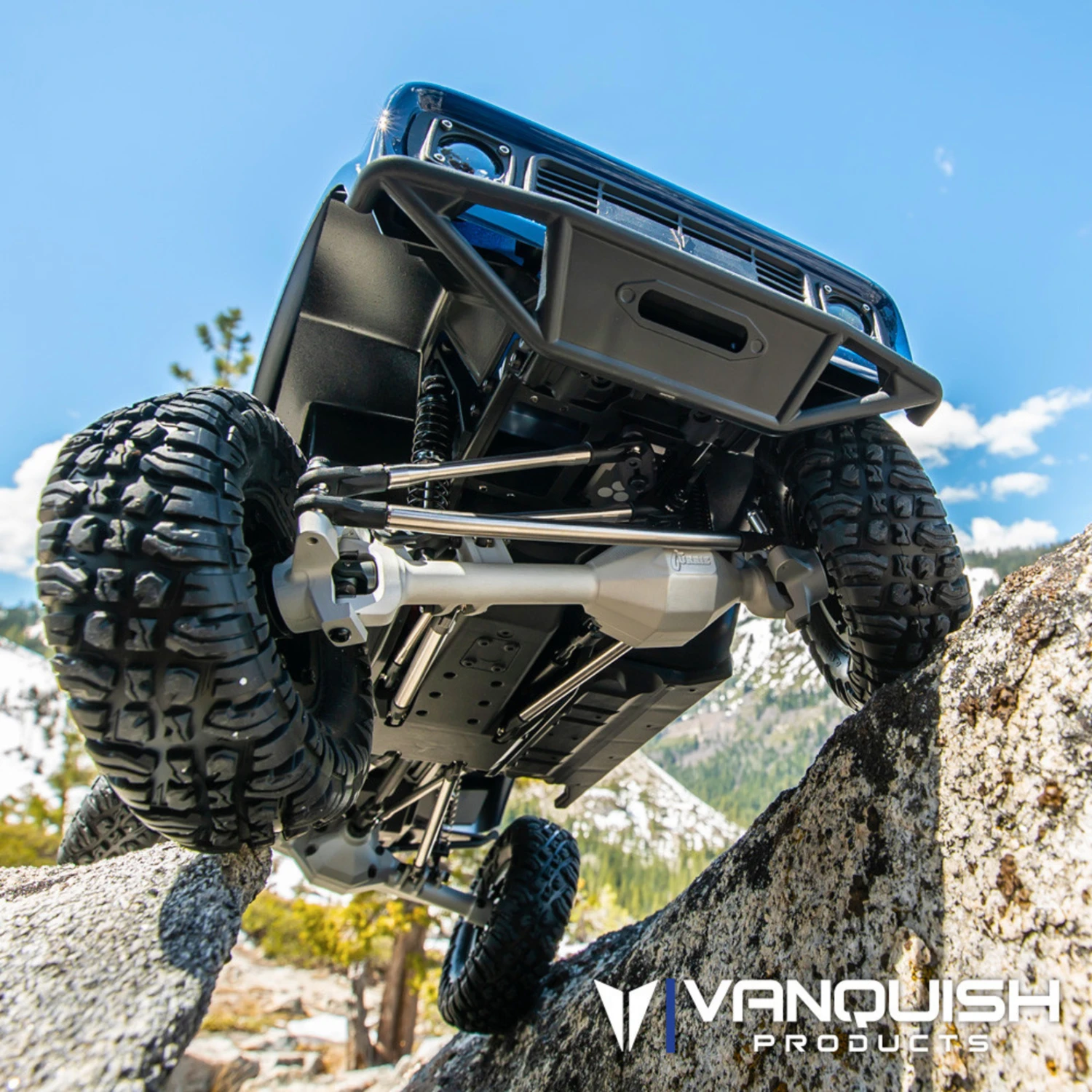

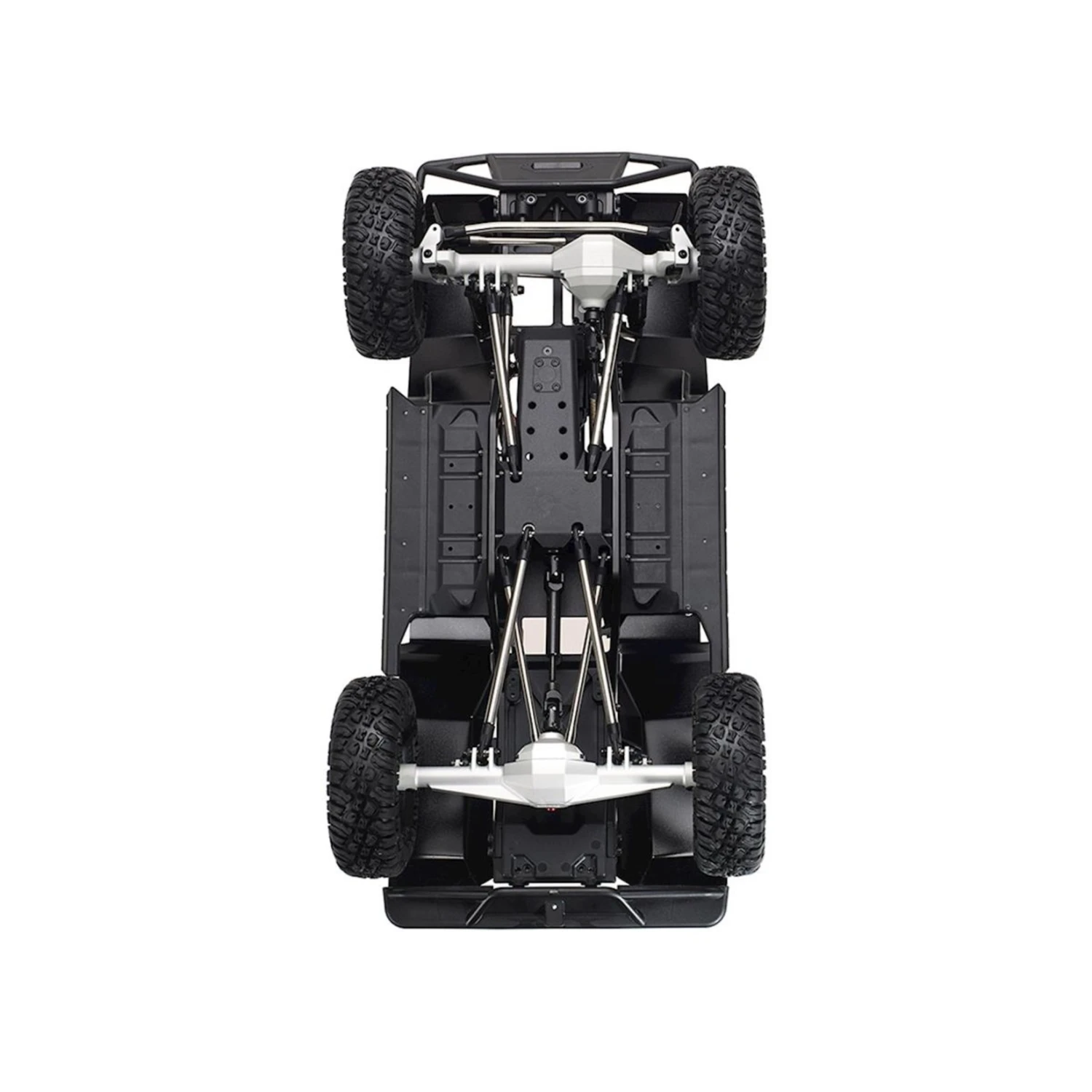

The VS4-10 features Incision 90mm Scale shocks with aluminum threaded bodies, dual X-ring seals, locking preload collars, keyed spring cups, polished steel shock shafts, and machined pistons. The front 3-link with panhard suspension provides scale looks by keeping the servo out of sight, while still providing room for large suspension travel. The suspension pivots on a full set of stainless-steel links to keep the weight down low with a smooth transition from the link to the rod ends. All suspension mounts are sized to fit to the rod end pivot ball perfectly and eliminate excess side to side play.

• Incision 90mm Scale Shocks
• 3-link with Panhard Front Suspension
• Double Triangulated 4-link Rear Suspension
• Incision Stainless Steel Links
• Double Shear Shock Mounting
• Multiple optional link mounting positions at the chassis for suspension tuning

The VS4-10 includes Incision KMC Machete plastic beadlock wheels and Vanquish VXT tires. The wheels are true beadlocks and are compatible with all Incision aluminum hub options. The VXT tires are 4.65″ tall and are molded in a soft and sticky natural rubber compound for performance right out of the box. Firm foams are used to provide sidewall support that helps prevent the tire from rolling over, while keeping the tread in contact with the terrain.

• Incision KMC Machete Beadlock Wheels
• Adjustable Offset Design
• VXT 4.65″ Tires
• Soft and Sticky Natural Rubber Compound
• Firm Tire Foams

• Shock Oil
• Tools
• Paint
• Grease
• Threadlock
• Battery
• Charger
• Radio System
• 540 size Motor (3mm Motor Shaft Recommended)
• ESC
• Steering Servo
• Servo Horn (20mm Length Recommended)
