RC4WD TRAIL FINDER 3 RTR W/ MOJAVE II HARD BODY SET #Z-RTR0045

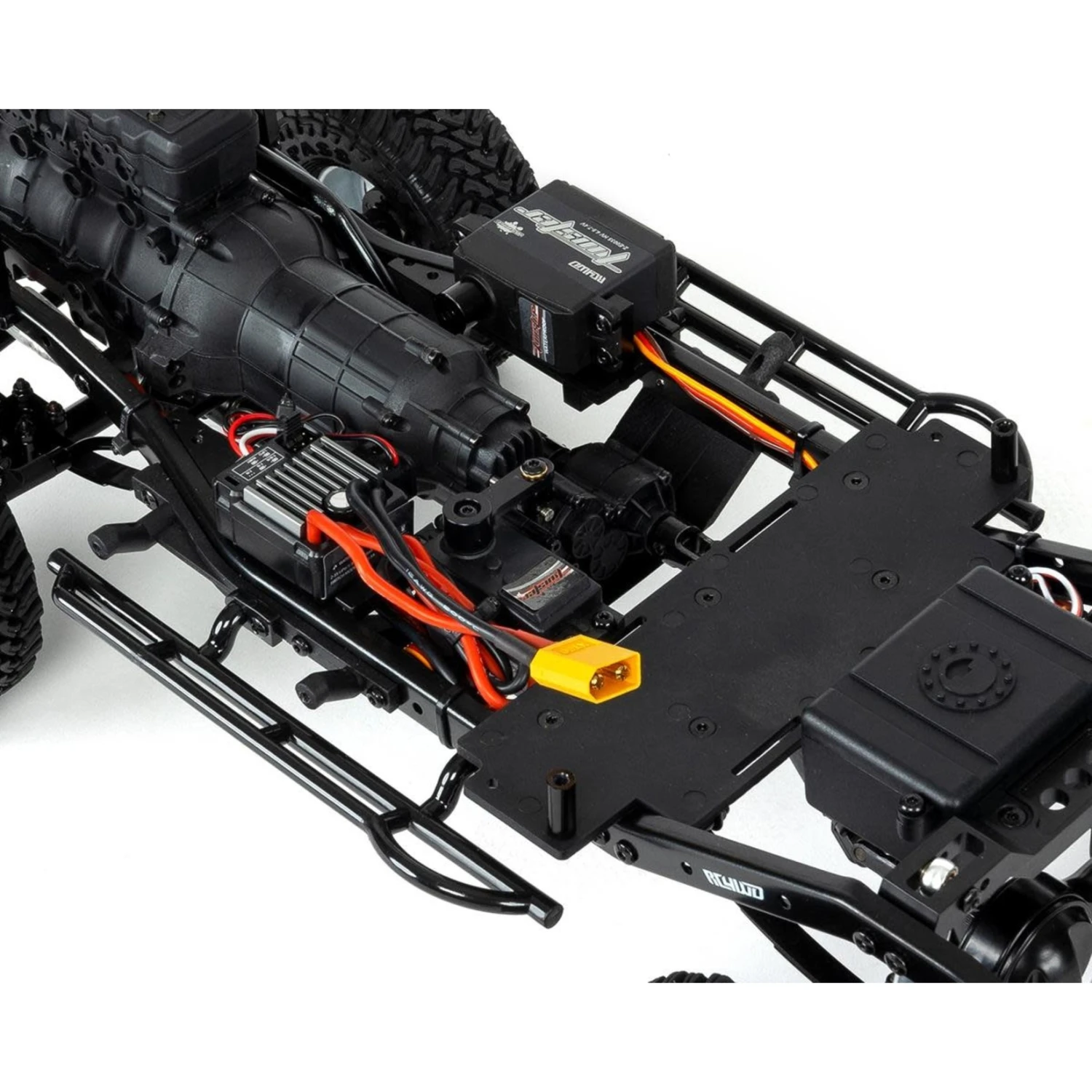

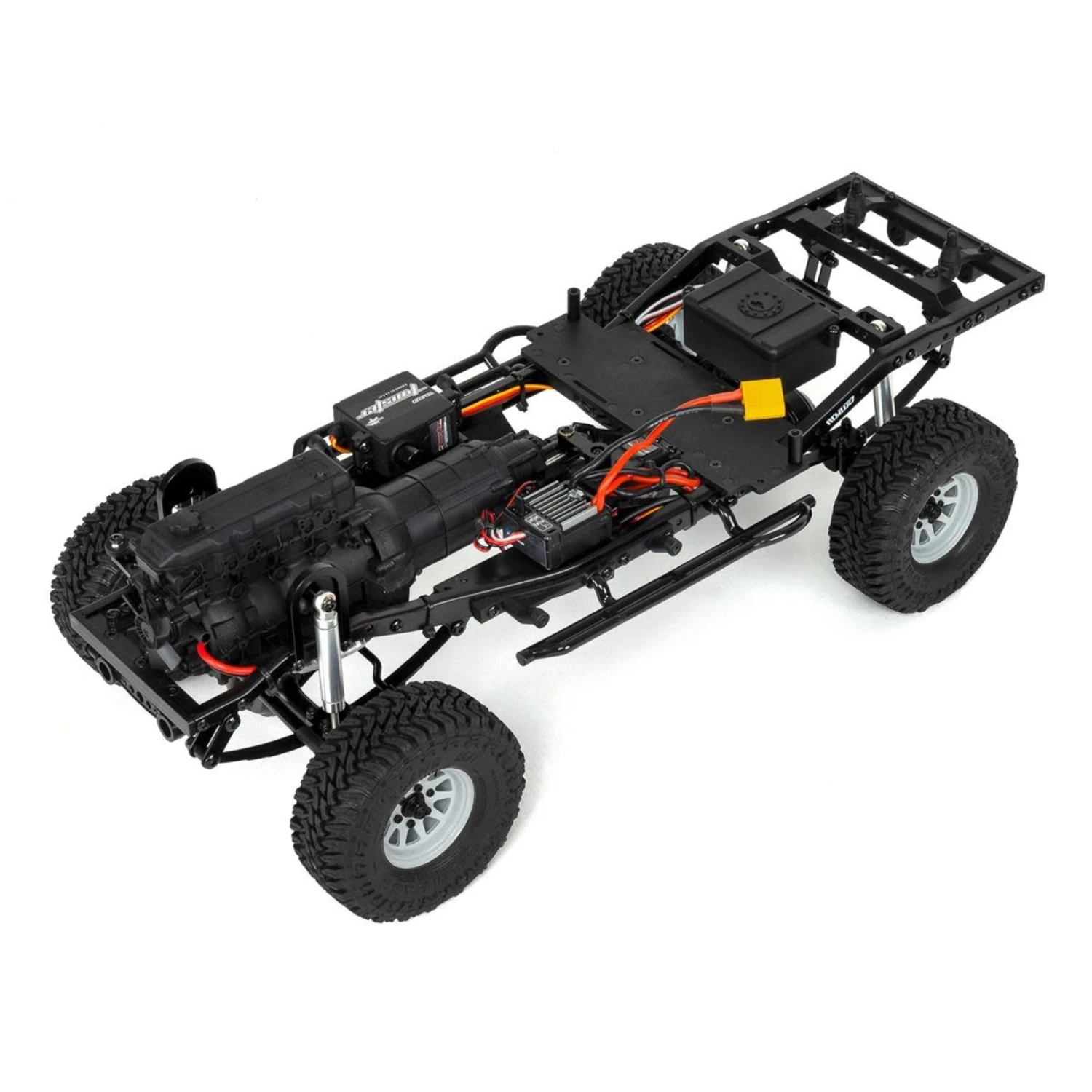

The RC4WD Trail Finder 3 1/10 Scale RTR Rock Crawler is one of the most realistic scale trucks on the market. The TF3 delivers an authentic appearance and a higher level of scale realism. Stamped steel c-channel chassis rails create a strong backbone that accurately replicates the details of a 1:1 truck frame. The chassis rails have been paired with aluminum structural crossmembers and a black nylon center skid plate for durability. The rails are tapered front to back to create a realistic, durable, stable and balanced driving experience.

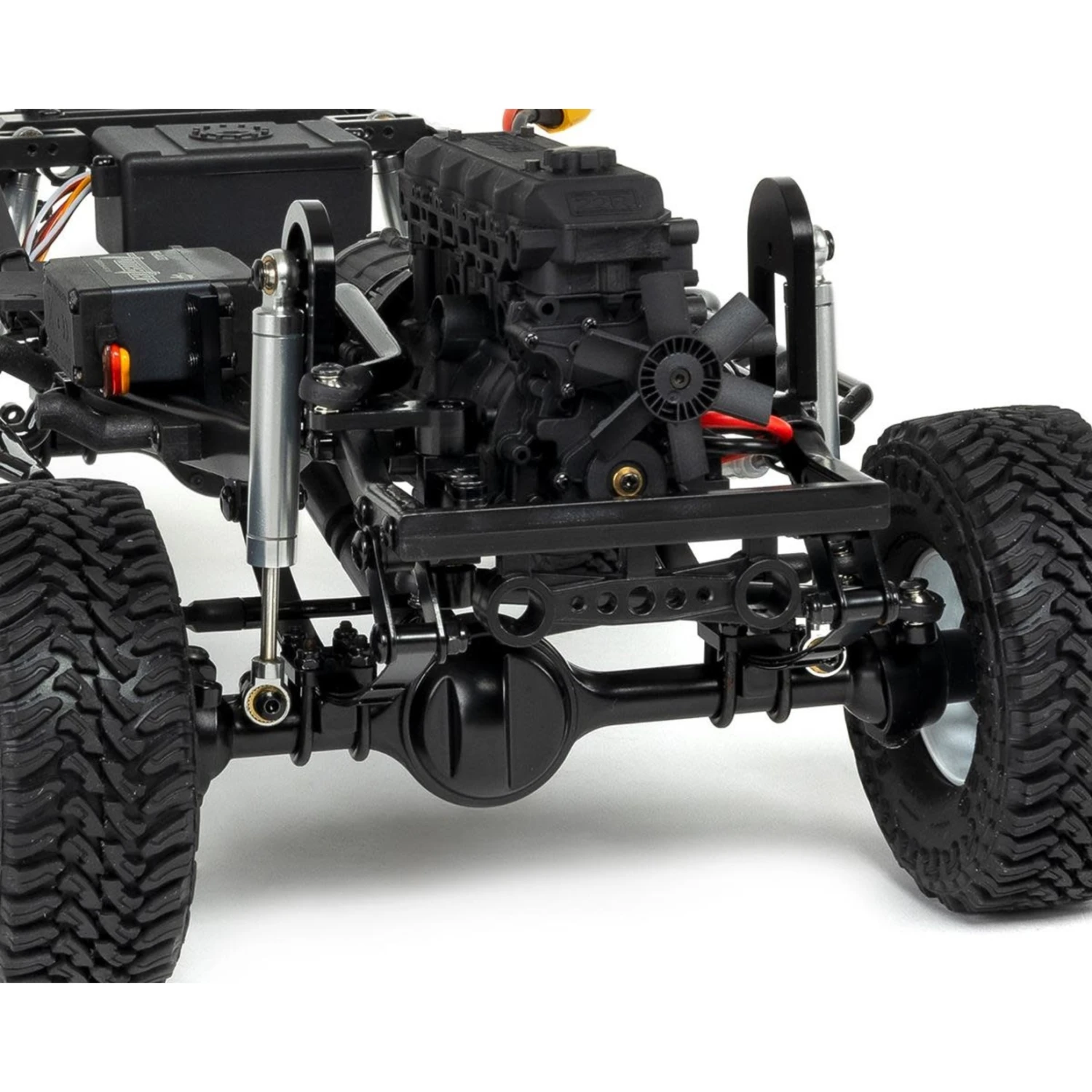

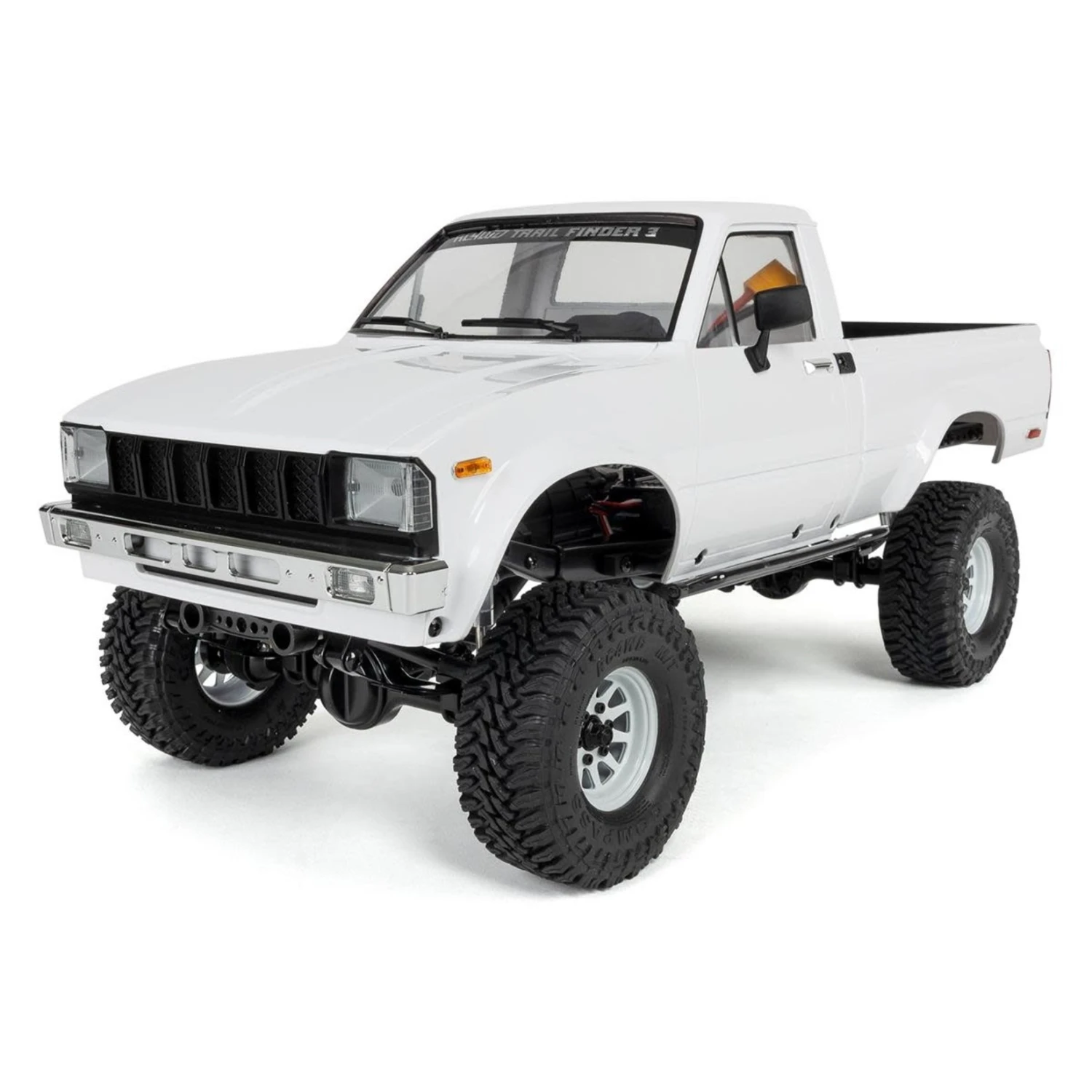

The included Mojave II Hard Body Set offers realistic details, with a glossy white finish that is ready for customization. Under the hood a modular cosmetic engine cover hides the electric motor and comes equipped with an engine compartment full of molded engine parts. Water pump, valve cover, cylinder head, and even a removable oil cap are included to dress up the engine compartment! It’s all finished off with a molded 22R engine code label adjacent to an RC4WD logo for added authenticity. Plus, Our Trail Finder 3 features front and rear Plastic Tube Bumpers and Side Plastic Sliders from Marlin Crawler to complete the truck’s off-road look!

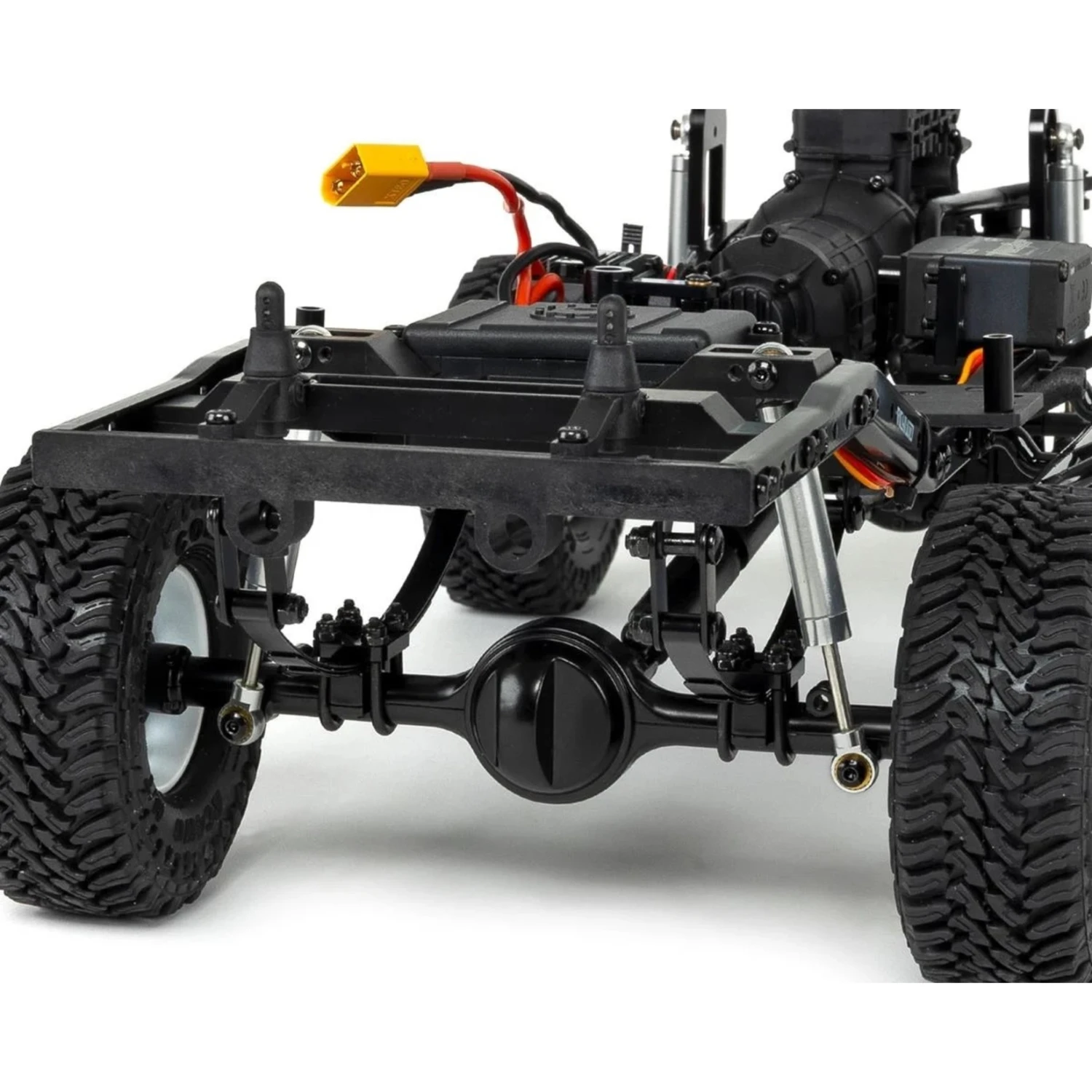

The TF3 drivetrain features a realistic looking 2-speed transmission that replicates the function of a full size transmission. The gearbox features a 3.47:1 low gear ratio for greater torque and a 1.27:1 high gear for more speed. Hardened steel gears combined with durable shifting components transmit power from the transmission to the driveline. Super scale Yota 2 axles are cast metal, and feature innovative details, like 8-degree knuckles, removable diff cover and a compact offset pumpkin. Near the axles, u-bolts attach the leaf springs, replicating the setup of a real truck. The engine housing features three motor mounting positions, allowing for the installation of either 11T, 12T, or 13T pinion gears to fine tune the overall ratio to your preference. This results in complete control when tackling obstacles and steep climbs.

• Mojave II Body in Gloss White
• Realistic Steel C-channel Chassis
• 22R Scale Engine
• W56 2-Speed Transmission With Transfer Case
• Yota II Ultimate Scale Cast Axles
• Twister High Torque Metal Gear Digital Servo
• RC4WD Ultimate Scale Shocks
• Marlin Crawler Side Plastic Sliders
• RC4WD Marlin Crawler Front Plastic Tube Bumper
• RC4WD Marlin Crawler Rear Plastic Tube Bumper
• OEM 6-Lug Stamped Steel 1.55″ Beadlock Wheels (White)
• Compass M/T 1.55″ Scale Tires
• 540 Crawler Brushed Motor 45T
• Outcry III Waterproof ESC

Wheelbase: 287.00mm (11.30″)

Width: 215.00mm (8.46″)

Height: 217.48mm (8.56″)

Ground Clearance: 66.63mm (2.62″)



• (1) RC4WD Trail Finder 3 RTR W/ Mojave II Hard Body Set
• (1) 6-Cell 3000mAh NIMH Battery Pack
• (1) NIMH Peak Battery Charger

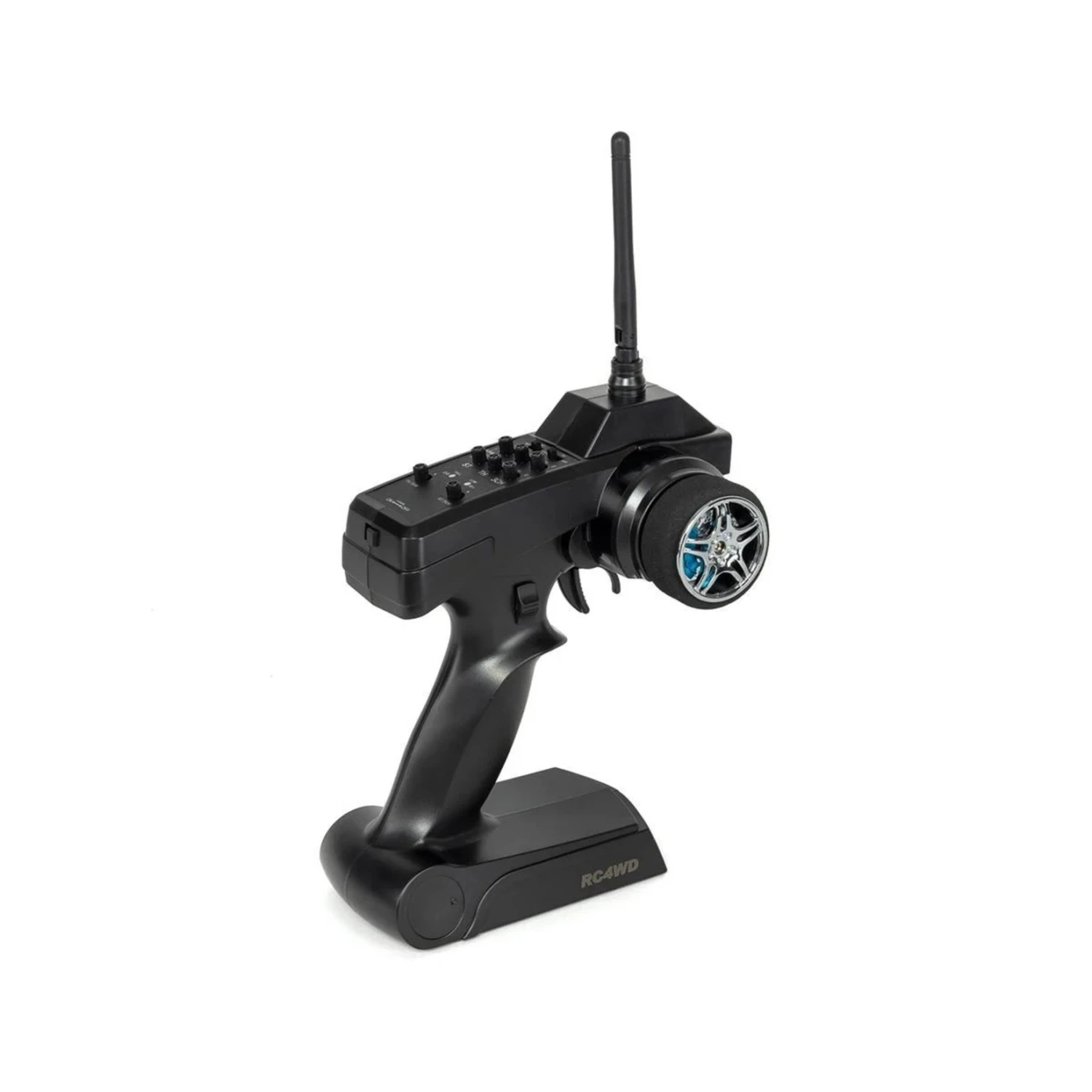

• (1) XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio
• (4) AA Batteries

• Nothing! Everything you need to start driving is included in the box.

• While some components may come assembled, RC4WD recommends that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.
