Gmade BOM GS02 1/10 4WD Ultimate Trail Truck Rock Crawler Kit #GM57000

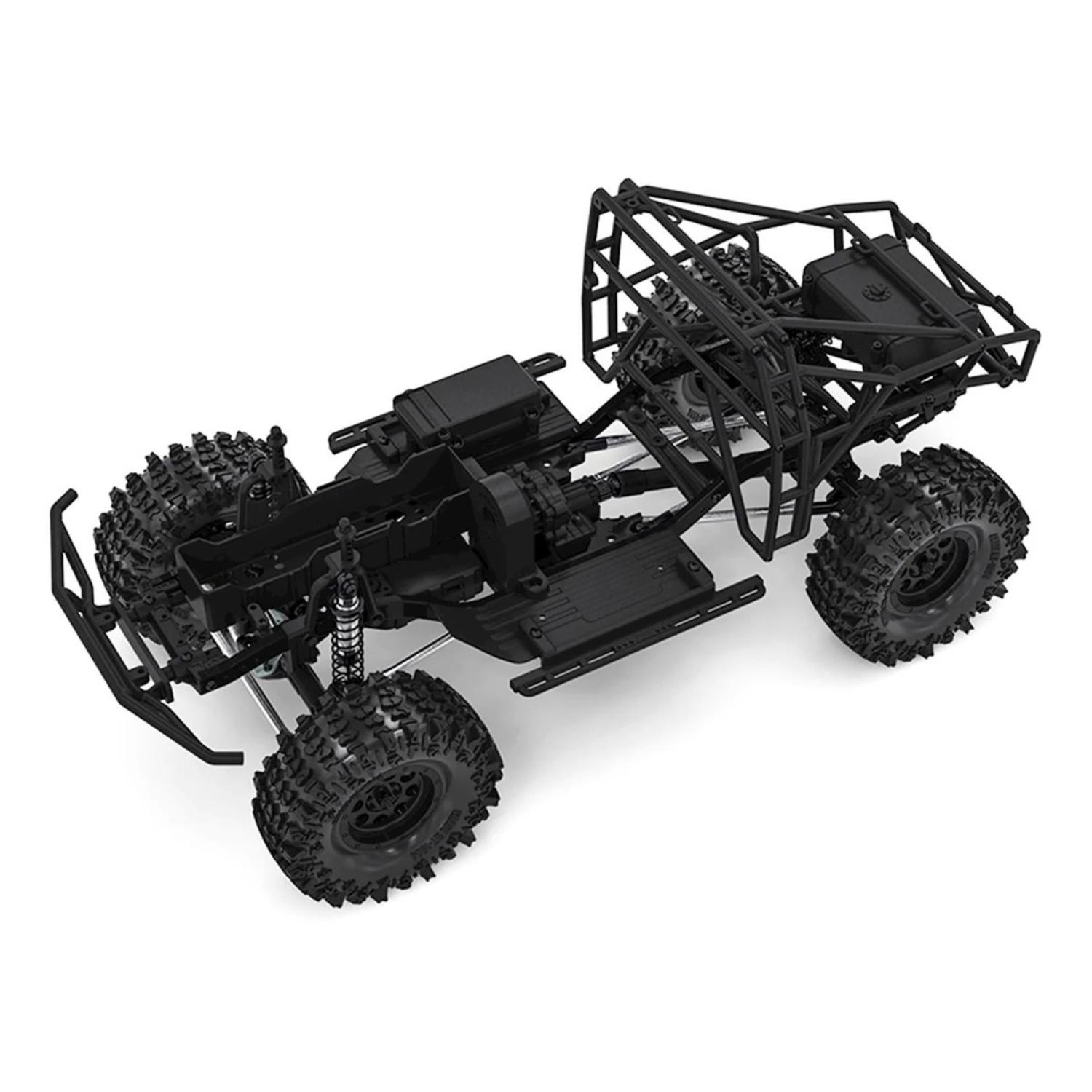

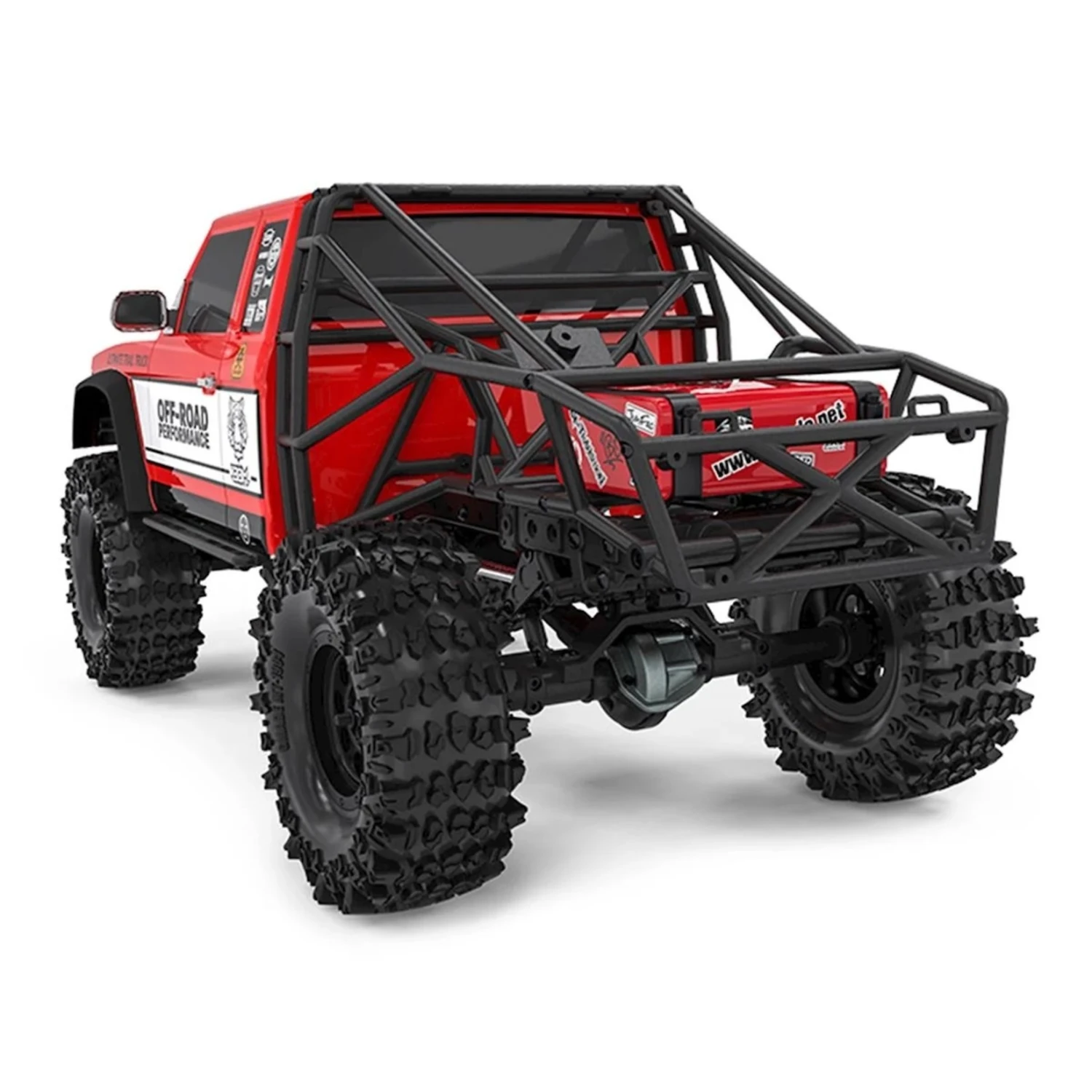

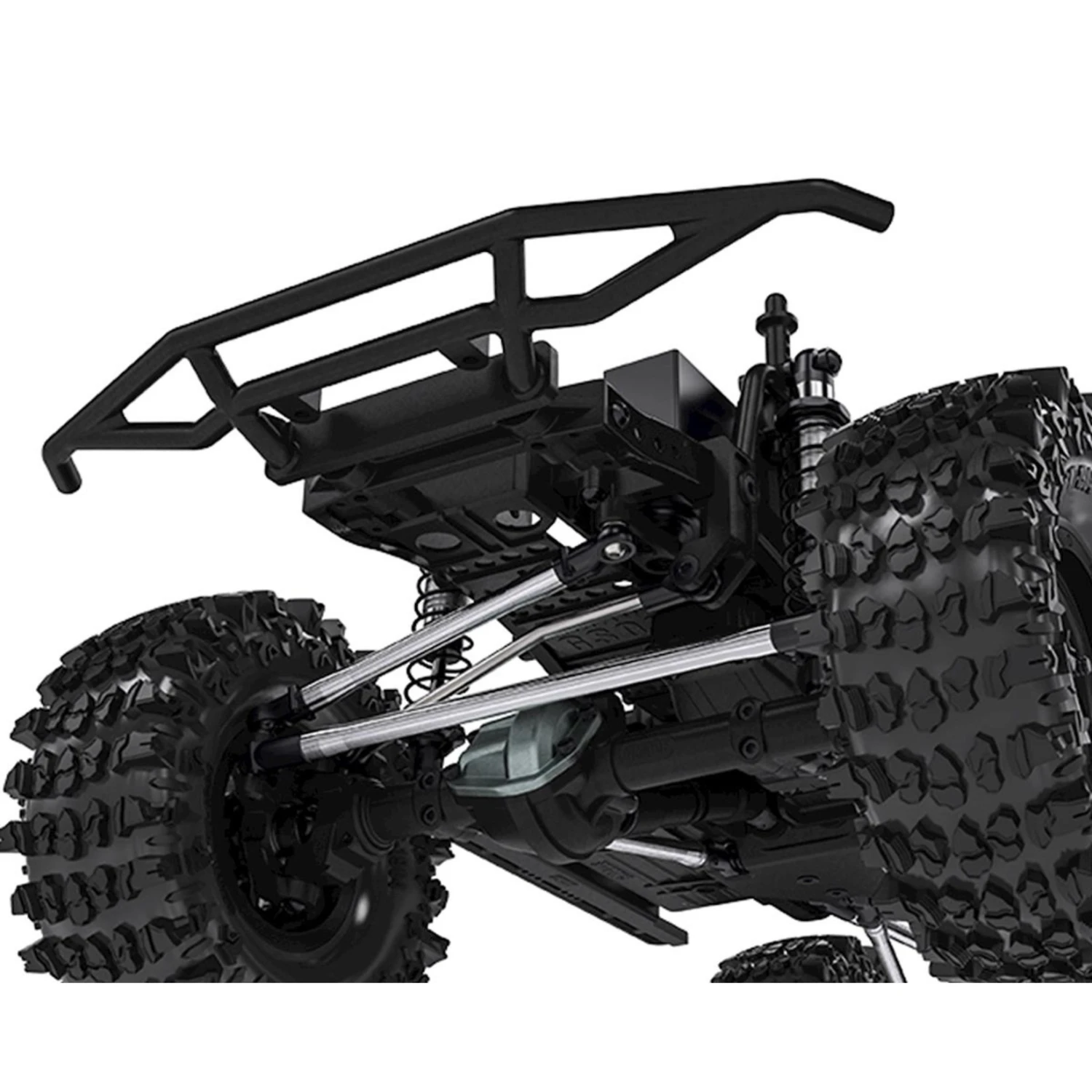

The Gmade BOM GS02 1/10 4WD Ultimate Trail Truck Kit is built on a scale ladder frame with stand-up front and lay-down rear shocks that make way for the scale rear bed cage. The steering servo is located in the front part of the chassis and the steering assembly is a zero-Ackermann design for maximized steering performance. Angled front king pins minimize the scrub radius for further increased steering efficiency. The heavy-duty threaded aluminum shock absorbers utilize 3.5mm shock shafts and the transmission, with all-metal internal gears, helps reduce torque twist. Optionally a 2-speed hi/lo transmission conversion will be available separately to add speed when needed. The kit is finished off with grippy tires, a cool looking body shell and some scale accessories that will help add realism to the build.

Features:

• Comes with rugged GA44 axles
• Forward weight balance for greater trail capability
• Frame mounted steering servo for increased scale realism
• Beefy TTR transmission
• Dual slipper clutch
• All metal transmission gears
• Counter rotating driveshafts for reduced torque twist
• Cantilever or standard rear shock mount options included
• Body hinges on rear cage hinge for easy access to the chassis

Specifications

• Width: 240mm
• Height: 226mm
• Length: 515mm
• Wheel Base: Adjustable (287, 313, 324, 336mm)
• Ground Clearance: 79mm
• Weight: 4.2lbs (no electronics)

Needed to Complete:

• 2-Channel Radio System
• 540 Electric Motor & ESC
• High Torque Steering Servo
• 7.2 NiMH – 7.4V LiPo Battery & Compatible Charger
• Paint for body
• Tools for assembly

NOTE: Painted body shown in photos is for illustrative purposes only. Included body is clear and requires painting.
